Description

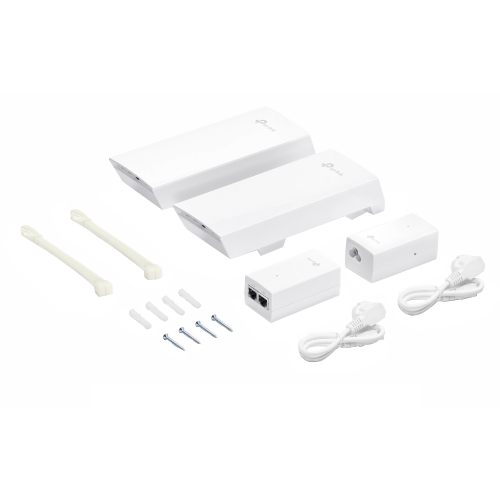

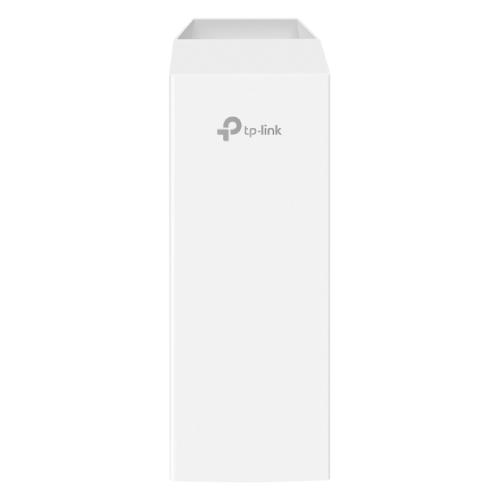

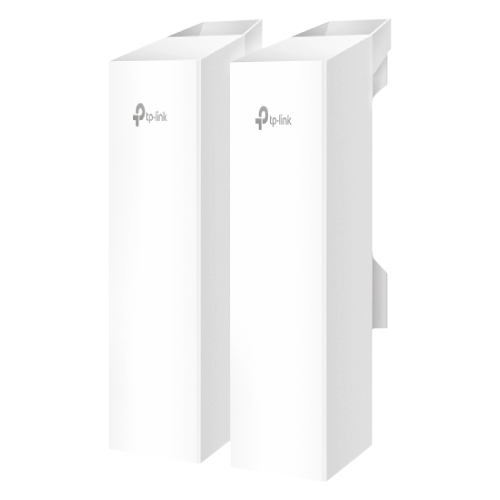

TP-Link EAP215 WiFi 5 Long-Range Point-to-Point Bridge Kit

The TP-Link EAP215 WiFi 5 Point-to-Point Bridge Kit is designed to provide dependable wireless connectivity over long distances. Operating on the 5GHz frequency band, it delivers high-speed data transmission of up to 867Mbps, making it suitable for both indoor and outdoor networking applications. Whether connecting remote buildings, surveillance systems, farms, or business locations, the EAP215 offers a stable and efficient wireless bridge solution.

Main Features

• WiFi 5 (802.11ac) technology with wireless speeds of up to 867Mbps on the 5GHz band.
• Supports long-distance wireless links of up to 5km.
• Quick deployment with automatic pairing and intelligent LED alignment indicators.

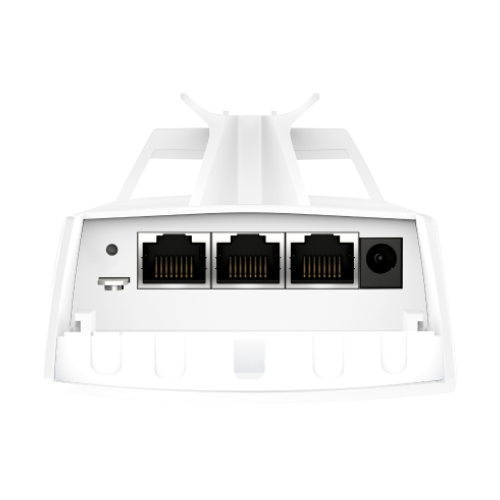

• Equipped with three Gigabit Ethernet ports for connecting multiple IP cameras and network devices.
• Fully compatible with Omada SDN for centralised cloud-based monitoring and management.
• Rugged IP65-rated enclosure with 6kV lightning protection for reliable outdoor operation.
• Includes Passive PoE support for flexible installation options.

Long-Range Wireless Connectivity

Up to 5km Coverage

Perfect for extending network access to remote buildings, agricultural sites, warehouses, and other distant locations.

Wide 70° Beam Coverage

A broader coverage angle allows a single access point to communicate with multiple remote bridges and cameras, reducing deployment costs.

Multiple Device Connections

Three integrated Gigabit Ethernet ports enable direct connection of several cameras or network devices without requiring an additional switch.

Built for Outdoor Environments

The weather-resistant IP65 housing and operating temperature range of -40°C to 70°C ensure dependable performance in harsh conditions.

Flexible Management Options

The EAP215 can operate either as a standalone wireless bridge or as part of the Omada SDN ecosystem, allowing administrators to choose between simple local management or centralised cloud control through the Omada App or Web Interface.

Point-to-Point Applications

Connect Additional Buildings

Extend internet and network access to garages, workshops, barns, guesthouses, storage units, retail outlets, farms, or recreational vehicles without laying cables.

Link Multiple Office Locations

Create reliable building-to-building connections and provide bandwidth of up to 550Mbps within a 100m range.

Lift and Elevator Surveillance

Transmit live CCTV footage directly to a network video recorder (NVR) while minimising the need for extensive cabling.

Point-to-Multipoint Surveillance Solutions

Car Parks

Wirelessly connect security cameras across large parking areas to improve monitoring and safety.

Farms and Orchards

Protect livestock, crops, and equipment by deploying remote surveillance cameras across large outdoor spaces.

Construction Projects

Quickly establish temporary wireless networks for site monitoring, progress tracking, and operational management.

Quick Installation

Automatic Pairing

Bridges are pre-configured for fast deployment, reducing installation time.

Signal Strength LEDs

Integrated LED indicators simplify alignment and help achieve optimal wireless performance.

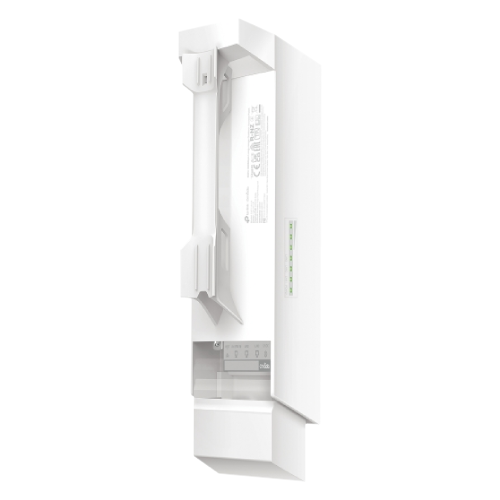

Flexible Mounting

Suitable for both wall and pole installations.

Standalone Deployment

1. Power up both bridge units and connect the primary unit to your existing network.
2. Configure the main bridge through the Omada App or web management interface.
3. Install the secondary bridge at the remote location and align it using the built-in signal indicators.
4. Fine-tune performance using the Omada management tools if required.

Omada SDN Integration

When integrated with Omada SDN, the EAP215 enables centralised management, remote monitoring, and streamlined deployment of multiple bridge links through batch provisioning and cloud-based administration.

Designed for Demanding Outdoor Conditions

• IP65 weather-resistant enclosure
• 6kV lightning protection
• Operating temperature range from -40°C to 70°C
• High wind resistance
• Suitable for year-round outdoor use

Warranty

Manufacturer Warranty: 2 Years
